PLATINUM

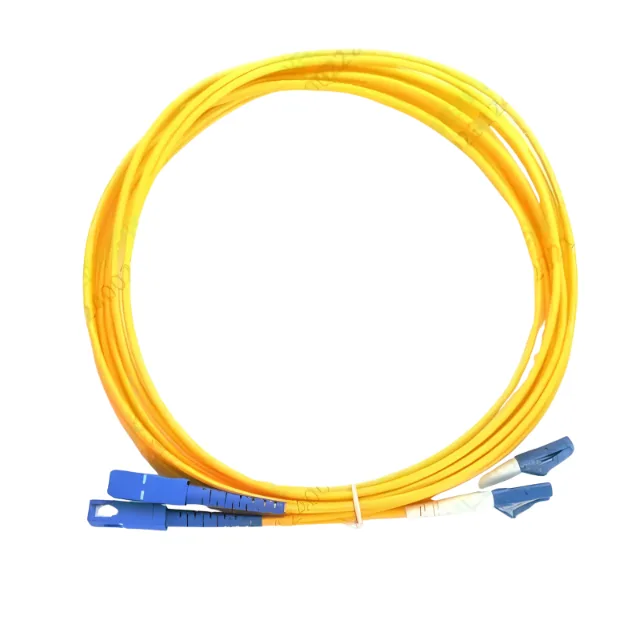

S/M FIBER PATCH CORD 70 MTR
In Stock — 500 available
Single Mode (S/M) Fiber Patch Cord 70 Meter is a premium quality optical fiber cable designed for high-speed and long-distance data transmission in telecom, FTTH, enterprise networking, and data center applications.
Cash on Delivery
Pay when the order is delivered.
Genuine Stock
Quality assured by Atlantic Lahore.
Description
Single Mode (S/M) Fiber Patch Cord 70 Meter is a premium quality optical fiber cable designed for high-speed and long-distance data transmission in telecom, FTTH, enterprise networking, and data center applications. It is manufactured using 9/125µm OS2 single-mode fiber that provides excellent bandwidth, low attenuation, and stable optical performance over long distances. Single-mode fiber cables are commonly identified by their yellow outer jacket and are optimized for 1310nm and 1550nm wavelengths. This 70-meter fiber patch cord is suitable for connecting switches, routers, media converters, ODFs, patch panels, GPON/EPON devices, and SFP modules. It supports reliable transmission for Gigabit, 10G, 40G, and higher-speed optical networks. The cable is available with various connector options such as SC, LC, FC, and ST to ensure compatibility with different fiber networking equipment. The patch cord is constructed with a durable LSZH or PVC outer jacket that provides flexibility, protection, and long service life. Some models also feature bend-insensitive fiber technology for improved performance in tight installation spaces. Single-mode fiber patch cords are widely used in indoor and outdoor installations where stable long-distance communication is required.
Specifications
- Product Type
- Single Mode Fiber Patch Cord
- Cable Length
- 70 Meter
- Fiber Type
- OS2 Single Mode 9/125µm
- Connector Types
- SC / LC / FC / ST
- Connector Polish
- UPC / APC Optional
- Fiber Standard
- ITU-T G.652D / G.657A1
- Cable Type
- Simplex / Duplex
- Operating Wavelength
- 1310nm / 1550nm
- Insertion Loss
- ≤ 0.15 dB
- Return Loss (UPC)
- ≥ 55 dB
- Return Loss (APC)
- ≥ 65 dB
- Cable Diameter
- 0.9mm / 2.0mm / 3.0mm
- Jacket Material
- LSZH / PVC
- Cable Color
- Yellow
- Durability
- ≥ 1000 mating cycles
- Bend Radius
- Bend Insensitive
- Operating Temperature
- -20°C to +70°C
- Compliance Standards
- IEC 61754, Telcordia GR-326, RoHS
- Transmission Support
- 1G / 10G / 40G / 100G Ethernet
- Application
- FTTH, Telecom, Data Center, LAN/WAN
- Compatibility
- ODF, SFP Modules, Routers, Switches, Media Converters
