PLATINUM

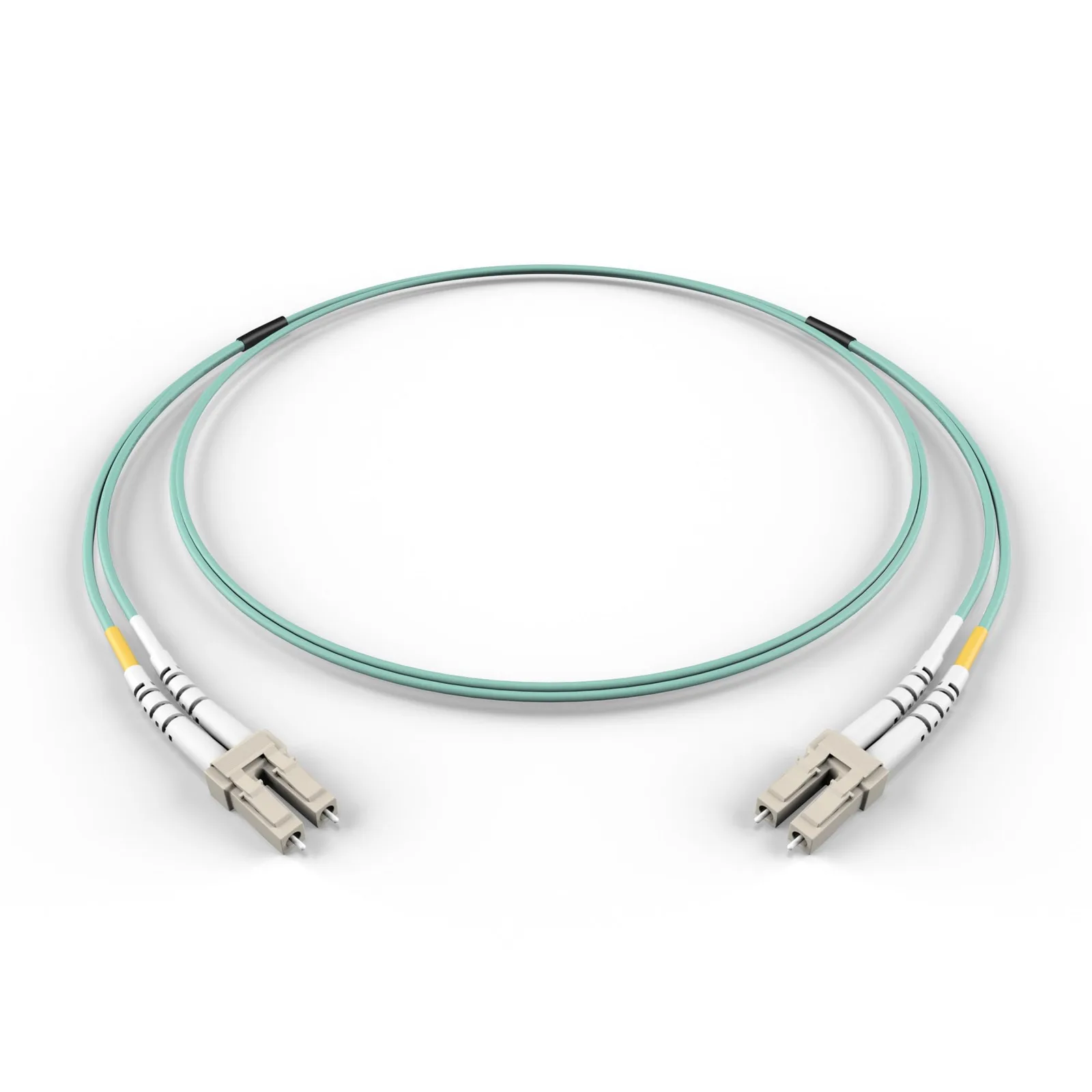

OM3 10G FIBER PATCH CORD 10 MTR
In Stock — 500 available
OM3 10G Fiber Patch Cord 10 Meter is a premium multimode fiber optic cable specially designed for high-speed 10 Gigabit Ethernet networks and optical communication systems.
Cash on Delivery
Pay when the order is delivered.
Genuine Stock
Quality assured by Atlantic Lahore.
Description
OM3 10G Fiber Patch Cord 10 Meter is a high-performance multimode fiber optic cable designed for ultra-fast and reliable data transmission in 10 Gigabit Ethernet networks. It is manufactured using premium OM3 50/125µm laser-optimized fiber to provide excellent bandwidth, low attenuation, and stable optical performance for modern networking applications. This fiber patch cord is ideal for use in data centers, telecom networks, server rooms, LAN infrastructure, FTTH systems, patch panels, switches, routers, and other optical communication equipment. The cable is available with SC, LC, FC, and ST connector options, ensuring compatibility with a wide range of fiber optic devices and networking hardware. The 10-meter cable length is suitable for medium-distance connections between network devices and rack systems. Precision ceramic ferrules minimize insertion loss and improve signal accuracy for efficient data transfer. The outer LSZH/PVC jacket provides durability, flexibility, and protection against bending, wear, and environmental conditions. OM3 multimode fiber supports 10G transmission speeds up to 300 meters and is optimized for high-speed laser-based applications. The patch cord ensures secure connectivity, consistent signal quality, and long-lasting performance in demanding networking environments.
Specifications
- Product Name
- OM3 10G Fiber Patch Cord
- Fiber Type
- OM3 Multimode
- Core / Cladding Size
- 50/125µm
- Transmission Speed
- 10 Gigabit Ethernet
- Cable Length
- 10 Meter
- Connector Types
- SC / LC / FC / ST
- Connector Polish Type
- UPC
- Operating Wavelength
- 850nm / 1300nm
- Cable Jacket
- LSZH / PVC
- Cable Diameter
- 2.0mm / 3.0mm
- Insertion Loss
- ≤ 0.3dB
- Return Loss
- ≥ 20dB
- Bandwidth Capacity
- High Bandwidth Laser Optimized
- Tensile Strength
- High Durability
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -40°C to +80°C
- Application
- Data Centers, LAN, FTTH, Telecom, CCTV
- Compatibility
- Routers, Switches, Patch Panels, Optical Devices
- Installation Type
- Plug & Play
- Compliance Standards
- IEC, RoHS, Telcordia
