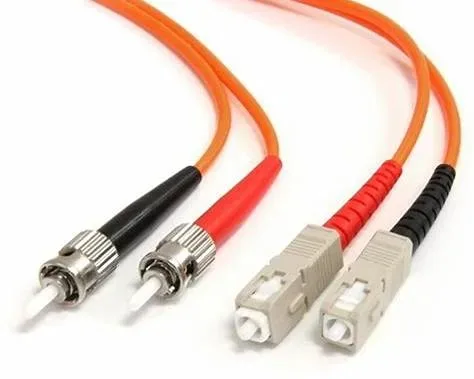

M/M FIBER PATCH CORD 5 MTR

Description

A M/M Fiber Patch Cord 5 Meter is a high-quality multi-mode fiber optic cable designed for high-speed optical communication in data centers, telecom networks, enterprise LAN systems, FTTH installations, CCTV fiber links, and industrial networking applications. It is commonly used to connect switches, routers, patch panels, ODFs, media converters, transceivers, and SFP modules with stable and reliable optical signal transmission. This fiber patch cord uses Multi-Mode optical fiber technology, typically available in OM1, OM2, OM3, OM4, or OM5 standards with 50/125 µm or 62.5/125 µm core sizes. Multi-mode fiber is ideal for short and medium-distance communication where high bandwidth and cost-effective networking are required. It supports Gigabit and 10-Gigabit Ethernet applications with excellent signal quality and low transmission loss. The cable is available in different connector combinations including SC, LC, FC, and ST connectors depending on networking requirements: SC Connector – Push-pull square connector commonly used in telecom and FTTH networks LC Connector – Compact connector widely used with SFP modules and data center equipment FC Connector – Screw-type connector designed for secure and vibration-resistant connections ST Connector – Twist-lock connector commonly used in industrial and legacy fiber systems The 5-meter cable length provides flexible connectivity for rack-to-rack connections, patch panels, server cabinets, and networking installations where additional cable reach is required. Duplex variants support simultaneous transmit and receive communication for full-duplex fiber networking systems. The patch cord is manufactured with precision ceramic ferrules that ensure low insertion loss, high return loss, stable optical performance, and reliable long-term operation. The outer jacket is usually made of durable LSZH (Low Smoke Zero Halogen) or PVC material for improved flexibility, safety, and cable protection. Multi-mode fiber patch cords commonly operate at 850 nm and 1300 nm wavelengths and are generally color-coded: Orange – OM1 / OM2 multimode fiber Aqua – OM3 / OM4 laser-optimized multimode fiber Lime Green – OM5 multimode fiber The cable supports Gigabit Ethernet, 10G Ethernet, Fiber Channel, and high-speed optical communication systems used in modern IT infrastructure and networking environments. Key Features 5 Meter Fiber Optic Patch Cable Multi-Mode OM1 / OM2 / OM3 / OM4 / OM5 Fiber Available in SC / LC / FC / ST Connectors Duplex & Simplex Variants Available Low Insertion Loss & High Return Loss High-Speed Stable Optical Transmission Supports Gigabit & 10G Ethernet Durable LSZH / PVC Jacket Flexible and Easy Installation Reliable Long-Term Performance Common Applications Data Centers Telecom Networks FTTH Installations Enterprise LAN/WAN Networks CCTV Fiber Systems Patch Panels & ODF Connections Server Rooms & Network Cabinets Industrial Fiber Communication Systems These fiber patch cords are widely used for secure, stable, and high-speed optical networking in professional communication systems.

Specifications

Product Type

Multi-Mode Fiber Patch Cord

Cable Length

5 Meter

Fiber Type

Multi-Mode (MM)

Fiber Standards

OM1 / OM2 / OM3 / OM4 / OM5

Core/Cladding Size

50/125 µm or 62.5/125 µm

Connector Types

SC / LC / FC / ST

Connector Polish

UPC / PC

Cable Type

Simplex / Duplex

Operating Wavelength

850 nm / 1300 nm

Insertion Loss

≤ 0.3 dB

Return Loss

≥ 20 dB

Jacket Material

LSZH / PVC

Cable Color

Orange / Aqua / Lime Green

Bend Radius

≥ 30 mm

Tensile Strength

High Durability Fiber Construction

Transmission Speed

Supports Gigabit & 10G Ethernet
