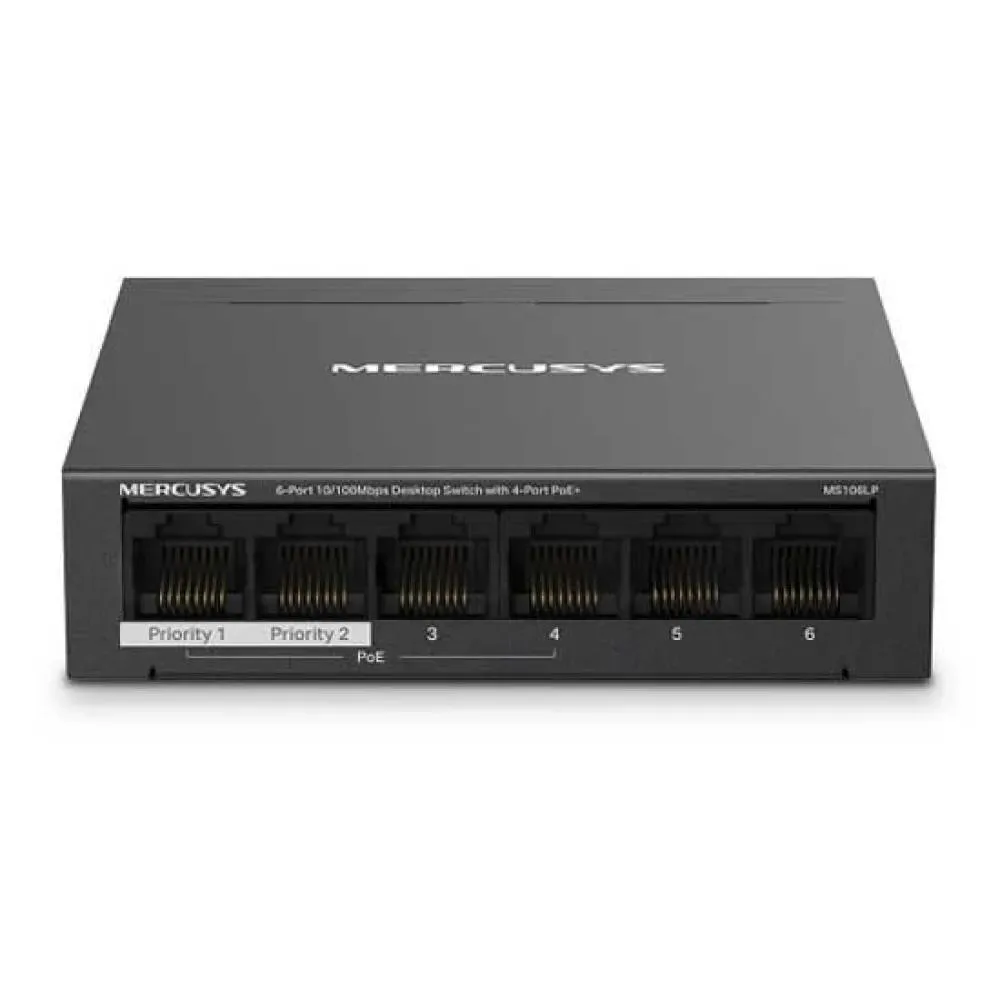

MERCUSYS MS106L 6PORT POE

Description

The MERCUSYS MS106LP is a compact Fast Ethernet PoE switch designed for CCTV systems, IP cameras, wireless access points, and small office networking. It comes with 6 RJ45 ports, including 4 PoE+ ports that deliver both power and data through a single Ethernet cable. Key features include: 6× 10/100 Mbps Ethernet ports 4× PoE+ ports supporting IEEE 802.3af/at Up to 30W power output per PoE port Total PoE power budget of 40W Extend Mode supports PoE transmission up to 250 meters Isolation Mode for improved network security and stability PoE Auto Recovery for automatic reboot of unresponsive devices Durable metal casing with fanless silent operation Plug & Play setup with no configuration required It is ideal for surveillance setups, shops, offices, and home networks where multiple PoE devices need stable connectivity and power delivery.

Specifications

Model

MERCUSYS MS106LP

Ports

6 × 10/100 Mbps RJ45 Ports

PoE Ports

4 × PoE+ Ports

Uplink Ports

2 × Uplink Ports

PoE Standard

IEEE 802.3af/at

PoE Power per Port

Up to 30W

Total PoE Budget

40W

Transmission Distance

Up to 250m (Extend Mode)
