MB 118 -4G

Description

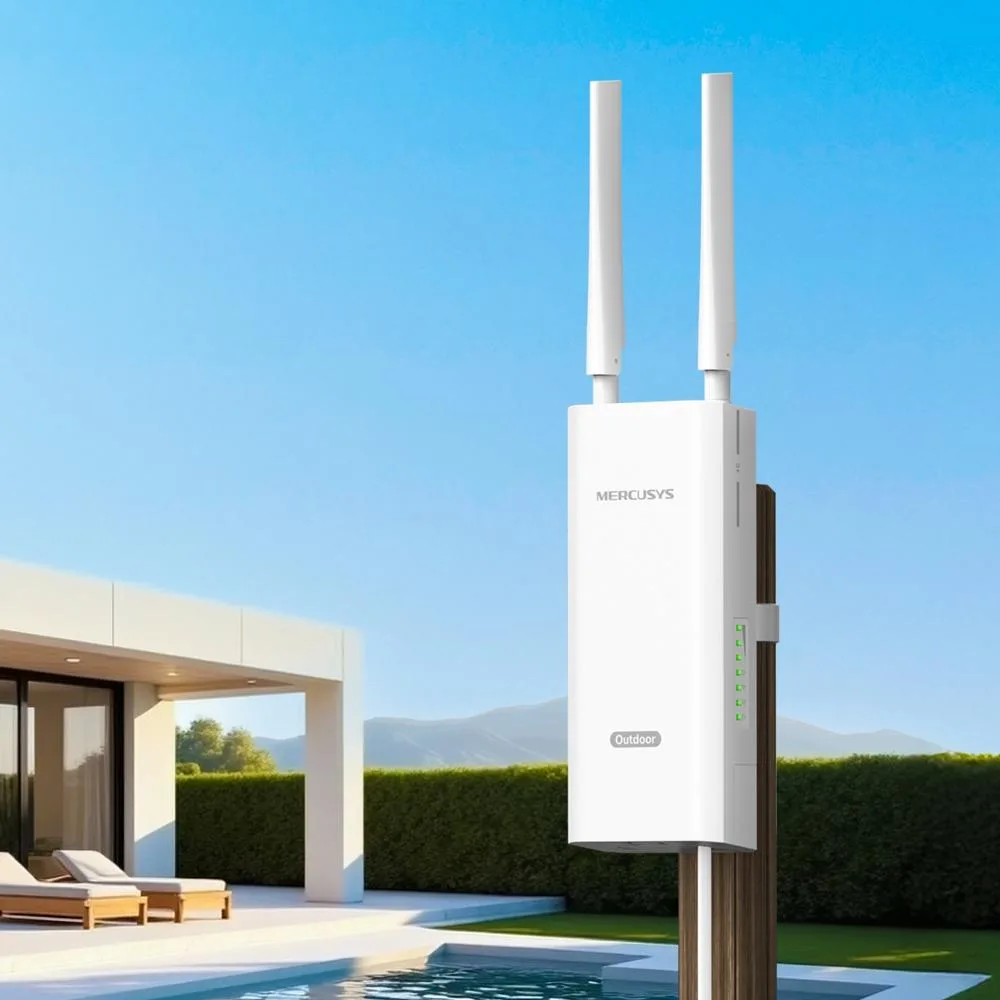

The MERCUSYS MB118-4G is a powerful 4G LTE Outdoor/Indoor Wi-Fi router designed to deliver stable internet connectivity in homes, farms, shops, offices, outdoor areas, and remote locations where traditional broadband connections may not be available. It combines high-speed 4G LTE networking with durable outdoor protection, making it an ideal solution for users who need reliable wireless internet coverage in challenging environments. The router supports 4G LTE Cat 4 technology with download speeds of up to 150 Mbps and upload speeds up to 50 Mbps, allowing users to enjoy smooth HD streaming, video conferencing, online gaming, cloud access, and fast web browsing. It also provides wireless speeds up to 300 Mbps on the 2.4 GHz band, ensuring stable Wi-Fi coverage for multiple connected devices. One of the key features of the MB118-4G is its plug-and-play Nano SIM support. Users simply insert a Nano SIM card and power on the router to instantly create a high-speed Wi-Fi network without complicated configuration or fixed broadband installation. The device supports both FDD-LTE and TDD-LTE bands, making it compatible with many mobile network providers worldwide. The MB118-4G is specially designed for outdoor and harsh environments with IP65 weatherproof protection, helping protect the router against dust, rain, heat, and other environmental conditions. It also includes lightning and ESD protection for additional durability and stable operation in outdoor installations. This makes it suitable for gardens, warehouses, cafés, farms, construction sites, barns, patios, pools, and rural areas. For improved LTE signal reception and wider coverage, the router features external detachable LTE antennas along with internal Wi-Fi antennas. Users can even replace the LTE antennas with high-gain alternatives for stronger signal performance in weak coverage areas. The router supports up to 32 connected devices simultaneously, making it ideal for families, offices, shops, and outdoor events. The MB118-4G offers flexible installation options including wall mounting, pole mounting, and window mounting. It also supports PoE (Power over Ethernet) and DC power supply, allowing easier deployment in outdoor locations where standard power sockets may not be nearby. IEEE 802.3af/at PoE support enables power transmission through a single Ethernet cable for cleaner and more convenient installation. In terms of software features, the router includes parental controls, guest network support, QoS, IPv4/IPv6 compatibility, firewall protection, SMS management, APN settings, data usage monitoring, and MERCUSYS cloud management. Users can easily configure and manage the router through the official MERCUSYS App available for Android and iOS devices. The device includes one 10/100 Mbps LAN port with PoE input, a Nano SIM slot, LED indicators for signal and network status, and a reset button for quick management. It operates in both 3G/4G Router Mode and Wireless Router Mode, providing flexibility for different networking setups. Users on Reddit and networking communities often discuss MERCUSYS routers as affordable and reliable solutions for areas with limited wired internet access, especially for backup internet and outdoor deployment scenarios.

Specifications

Product Model

MERCUSYS MB118-4G

Product Type

4G LTE Outdoor/Indoor Wi-Fi Router

LTE Category

Cat 4

4G LTE Speed

Download: Up to 150 Mbps / Upload: Up to 50 Mbps

Wi-Fi Speed

Up to 300 Mbps

Wi-Fi Standard

IEEE 802.11b/g/n

Wi-Fi Frequency

2.4 GHz

Max Connected Devices

Up to 32 Devices

Recommended Devices

Up to 16 Devices

SIM Type

Nano SIM

LTE Bands (FDD-LTE)

B1/B3/B5/B7/B8/B20/B28

LTE Bands (TDD-LTE)

B38/B40

3G Bands

HSPA+/UMTS B1/B5/B8

Antennas

2× External Detachable LTE Antennas + 2× Internal Wi-Fi Antennas

Ethernet Port

1× 10/100 Mbps LAN (PoE In)

Power Options

12V DC / Passive PoE / IEEE 802.3af/at PoE

Wireless Security

WPA-PSK / WPA2-PSK

Operation Modes

3G/4G Router Mode, Wireless Router Mode

Wireless Features

WPS, Wireless Schedule, Smart Connect

Guest Network

Supported

Parental Controls

Website Filtering, Time Control

Firewall

IPv4 SPI Firewall, IPv6 Firewall

DDNS Support

MERCUSYS DDNS, DynDNS, NO-IP

SMS Function

Inbox, Outbox, Drafts

Management

MERCUSYS App, Web Interface

Mounting Options

Wall Mount, Pole Mount, Window Mount

Weather Protection

IP65 Dustproof & Waterproof

Lightning Protection

±6kV Lightning Protection

ESD Protection

±15kV ESD Protection

Operating Temperature

-30°C to 60°C

Dimensions

230.9 × 97.2 × 54.7 mm

LED Indicators

Power, Internet, Wi-Fi, LAN, Signal

Package Contents

Router, 2 Antennas, PoE Injector, Power Adapter, RJ45 Cable, Mounting Kit
