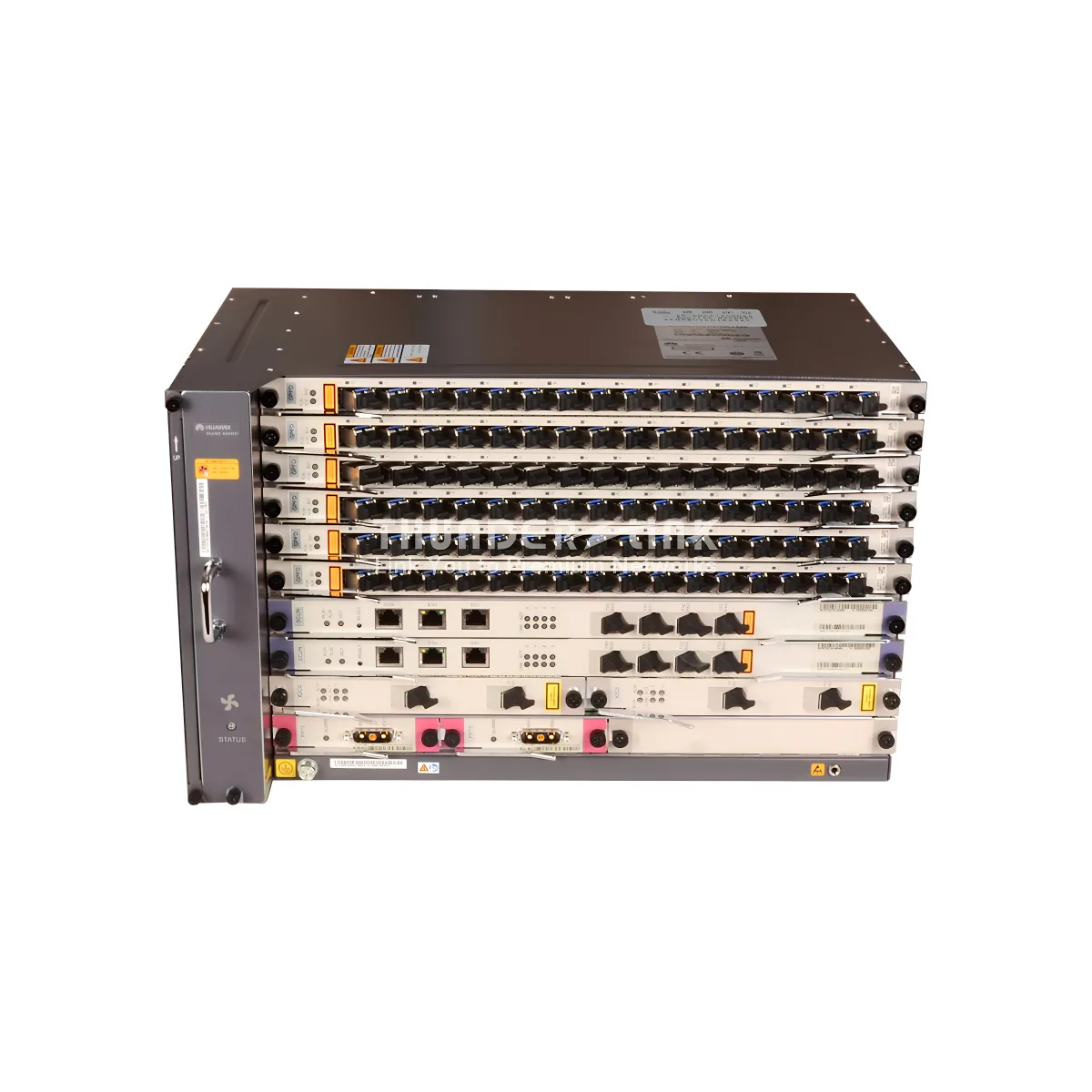

HUAWEI OLT M5683T WITH 16 PORT CARD

Description

The Huawei MA5683T OLT is a carrier-grade Optical Line Terminal (OLT) from Huawei’s SmartAX MA5600T series, specially designed for FTTH (Fiber to the Home), FTTB (Fiber to the Building), FTTC (Fiber to the Curb), enterprise access, and broadband aggregation networks. It is an advanced fiber access platform that integrates aggregation switching, broadband access, and edge routing into a single device. The MA5683T provides high-density GPON, EPON, 10G GPON, and Ethernet P2P services, making it suitable for telecom operators, ISPs, and large enterprise networks. The MA5683T supports triple-play services including high-speed internet, IPTV, VoIP, TDM leased lines, and enterprise VPN connectivity. With its modular design, redundant power supply, and dual control boards, it ensures stable and reliable network performance for large-scale fiber deployments.

Specifications

Model

Huawei MA5683T

Series

SmartAX MA5600T

Device Type

GPON / EPON / XG-PON OLT

Service Slots

6

Control Board Slots

2

Uplink Board Slots

2

Power Supply Slots

2

Universal Interface Slot

1

Switching Capacity

Up to 3.2 Tbps

Backplane Capacity

1.5 Tbps / 2 Tbps

Packet Forwarding Rate

Up to 1452 Mpps

GPON Split Ratio

1:128

Maximum GPON Ports

96

Maximum 10G PON Ports

48

Uplink Interfaces

GE / 10GE

Supported Technologies

GPON, EPON, XG-PON, P2P

Power Supply

-48V DC

Redundancy

Dual Power & Dual Control Boards
